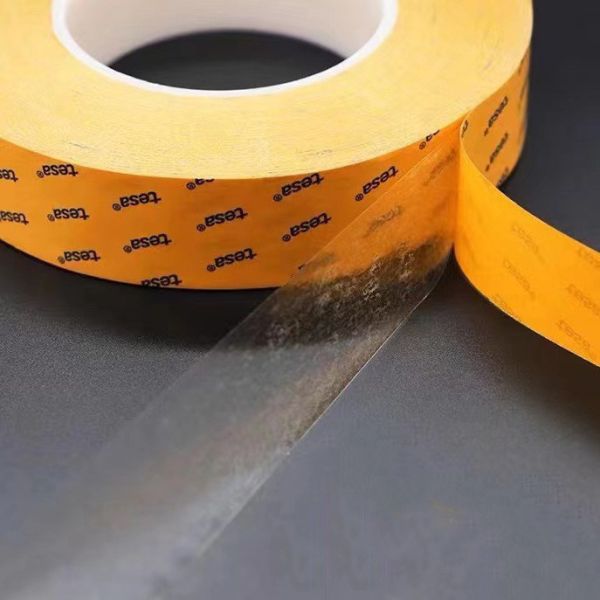

TESA 4982 PET Double-sided High Adhesive Transparency Splice Tape
TESA 4982 (Transparent Version)
Features: Transparent colorless, invisible after application, does not affect appearance, and has no shading property.
Applications: Primarily used for surface bonding of components or for structural fixation without shading requirements. For example, fixing transparent LCD panels, metal nameplates, or for battery group fixation, film switches, etc., in scenarios where transparency is required for the appearance.
Material Description: Transparent PET substrate + modified acrylic adhesive.
TESA 51982 (Black Version)
Features: Black substrate, in addition to the bonding function, also has shading (blocking light) and light absorption properties.
Applications: Primarily used for optical display modules. The most typical application is to fix LCD backlight panels to prevent light leakage from the edges (light leakage); or for fixing LCD panels with metal frames to prevent internal reflections from interfering with the display effect.
Material Description: Black PET substrate + modified acrylic adhesive
Common core advantagesWhether it is 4982 or 51982, they both possess the following "hard capabilities" that are highly suitable for precise assembly in the electronics industry:
- High-temperature soldering: The short-term temperature resistance is up to 200°C, enabling it to easily withstand the high-temperature impact of SMT reflow soldering process.
- Strong adhesive force: Even with a thickness of only 0.1mm, it has extremely strong initial adhesion and retention force on smooth surfaces of metals (steel, aluminum) and plastics (ABS, PC).
- High stability: Excellent anti-aging, moisture-proof, and chemical resistance properties, suitable for equipment with high reliability requirements over a long period.
PRODUCT PARAMETERS
| Brand |
TESA
|
| Series |
4982
|
| Base material |
PET
|
|
Color
|
Transparency
|
|
Thickness
(MM)
|
0.1 mm |
|
Tensile strength
( N / CM )
|
20 n/cm |
|
Elongation
(%)
|
50 % |
|
Specification
|
1372mm × 100m
(Customizable)
|
PEEL STRENGTH FOR DIFFERENT SURFACES :
| Material |
Initial peeling strength
(N/CM)
|
Peel strength after 14 days
(N/CM)
|
| Steel plates |
8.2 |
11.7 |
| Aluminum |
7.9 |
10.6 |
| ABS |
7.6 |
9.6 |
| PC |
9.2 |
11 |
| PET |
7.0 |
8.4 |
| PE |
4.6 |
5.1 |
| PP |
4.4 |
6.2 |
| PS |
8.3 |
9.2 |
| PVC |
7.0 |
10.0 |
PRODUCT DISPLAY
PACKING OF TRANSPORT
COMPANY PROFILE

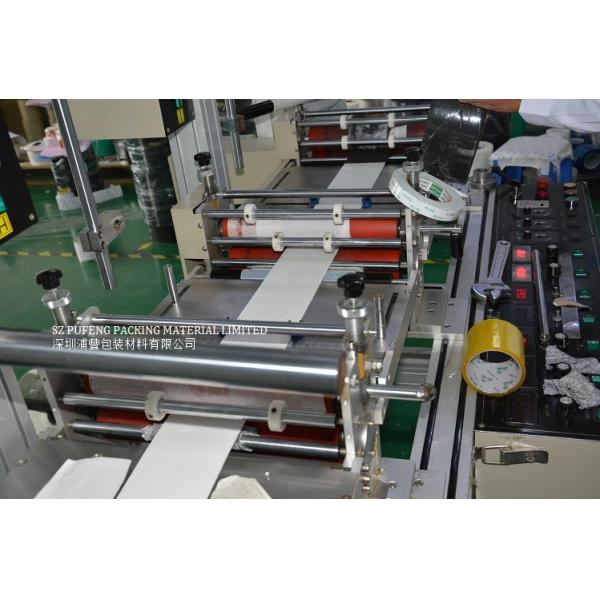

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.shock-proof, shading, etc.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
COMMON PROBLEM
1.)How to order from Pufeng?
Just send us an email or call us.
2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.
3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
